DLV10C10L_AY

Delvo Catalogue

Download PDF

Features of the Current Control Type:

Easy fastening setting by controller
Current Controlled Torque System suitable for screw fastening work
Low-voltage brushless motor
ESD (electrostatic discharge) protection structure
For both hand-held / automatic machines
Controller has built in counting function - Preventing human errors

Specifications

Starting Method:	Lever Start
Free Speed:	600 - 1000 min -1
Torque:	0.2 - 1 Nm
Screw Size (Machine Screw):	1.6 - 3.5 mm
Screw Size (Tapping Screw):	1.8 - 4.0 mm
Mass (Weight):	370 g
Voltage:	24 V DC
Power Consumption:	Approx. 30 W (rotating)

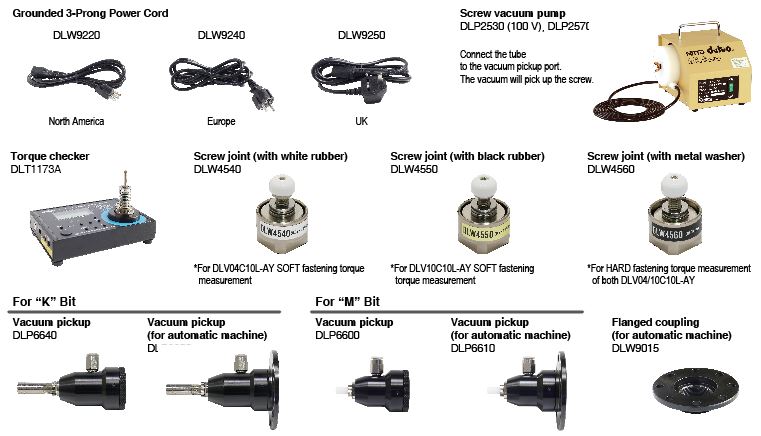

Optional Accessories

Bit Type (mm)

Torque Diagrams (for reference)

Controller

DCC0101x-AZ
Input Voltage:	100-240 V AC, 50/60 Hz
Operation Channel Function:	Torque and speed setting in 4-channel memory Can switch to any operation channel
Count Function:	Tracks screws fastened Workpiece detector can be incorporated
External Start up Control Function:	Start up control can be enabled by external input signal
Input Signal Method:	Photocoupler input (24 V DC drive (5 mA/1 input), respond to PNP output)
Output Signal Method:	Photocoupler output (30 V DC or less, 30 mA/1 output or less, PNP output method)
Service Power Source:	24 V DC (Maximum capacity 200 mA)
Power consumption:	When on standby: 20 W During electric screwdriver rotation (rated): 30 W
Mass:	1,1 kg
Power Cord (Optional):	DLW9220 / DLW9240 / DLW9250
