DLV45C12P_AY

Delvo Catalogue

Download PDF

Thirty different torque settings can be set on a single screwdriver
Features of the Current Control Type:

Current Controlled Torque System suitable for screw fastening work
Easy fastening setting by controller
Low-voltage brushless motor
ESD (electrostatic discharge) protection structure
For both hand-held / automatic machines
Nine speed settings available
Automatic three step speed control function
Two types of measuring methods (Time/Motor rotation signal)
Seven color indication LED (At the tip of the screwdriver)
Two external I/O signal connection ports (NPN - PNP switchable, RS-232C)
Controller has built in counting function - Preventing human errors
Various settings can be configured via a PC (Pree setting software available on NITTO KOHKi website here)
More infomation available on NITTO KOHKI website here)

Specifications

Starting Method:	Push Start
Free Speed:	100 - 1200 min -1
Torque:	0.6 - 4.5 Nm
Screw Size (Machine Screw):	2.5 - 5.0 mm
Screw Size (Tapping Screw):	3.0 - 6.0 mm
Mass (Weight):	630 g
Voltage:	24 V DC
Power Consumption:	Approx. 44 W (rotating)

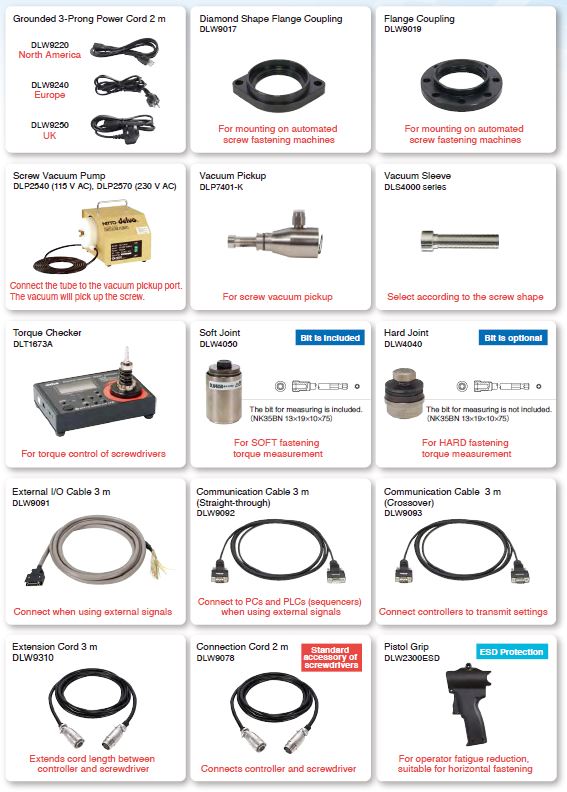

Optional Accessories

Bit Type (mm)

Torque Diagrams (for reference)

Controller

DCC0241X-AZ
Input Voltage:	100-240 V AC, 50/60 Hz
Count Function:	Tracks screws fastened Workpiece detector can be incorporated
External Start up Control Function:	Start up control can be enabled by external input signal
Input Signal Method:	Photocoupler input (24 V DC drive (5 mA/1 input), NPN/PNP switchable)
Output Signal Method:	Photocoupler output (30 V DC or less, 30 mA/1 output or less, NPN/PNP switchable)
Service Power Source:	24 V DC (Maximum capacity 200 mA)
Serial Signal Method:	RS-232C
ESD (Electrostatic Discharge) Protection:	Adopted (IEC61340-5-1 compliant)
Mass:	1,8 kg
Power Cord (Optional):	DLW9220 / DLW9240 / DLW9250
