DLV5820U

Delvo Catalogue

Download PDF

In response of the needs of cell production system space-saving DELVO screwdrivers are released. Controller is designed for emphasis on space-saving size and lightness.

Clear disengagement of clutch (low-shock mechanism unavailable)
Grounded bit installation mechanism
ESD (electrostatic discharge) protection
New lever is adopted
Low swing bit mechanism
Low voltage transformerless controller

Specifications

Starting Method:	Lever Start
Free Speed:	500-750 min -1
Torque:	0.02 - 0.2 Nm
Screw Size (Machine Screw):	1.0 - 2.3 mm
Screw Size (Tapping Screw):	1.0 - 2.0 mm
Mass (Weight):	230 g
Voltage:	40 V DC
Power Consumption:	Approx. 10 W
Standard Accessories:

Optional Accessories

Bit Type (mm)

Torque Diagrams (for reference)

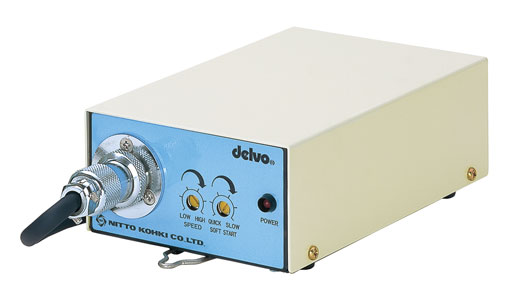

Controller

DLC0350GG
Input Voltage:	230 V AC, 50/60 Hz
Plug:	EUROPE
Mass:	230 g
